The ATP-398D Programmer is designed to give you the ease and convenience of programminjg the memories and set menu options of your radio from your PC.

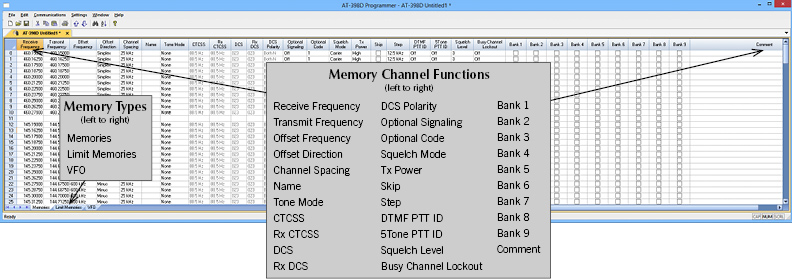

Memory Channels Include:
Other Menu Item Categories Include:
The Radio Programmer Is for so Much More than Just Memory Management.
The programming process begins by first installing the program then installing (and allowing) the drivers for the cable. Be sure to complete both of these steps.
Save your file as you work. This is a computer, after all, and you would hate to lose your work should the system fail. Actually, create and save as many files as you want or need. You could have one file for home, a different one for the vacation house, another for the trip to your son’s house, another for the yearly 3K run and picnic where you help direct traffic and want the radio to be programmed with only the frequencies for that event. Remember, radio programming is an overwrite process. Everything in the radio is replaced by everything in the file.

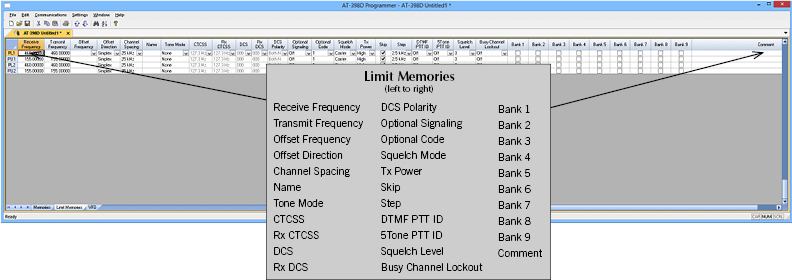

Limit MemoriesLimit Memories are used by the radio for Program Scan. Program the same details for Limit Memories as for regular memory channels. Many of the Limit Memories are preprogrammed in the radio and while the frequency can be changed to another within the band, they cannot be left blank.

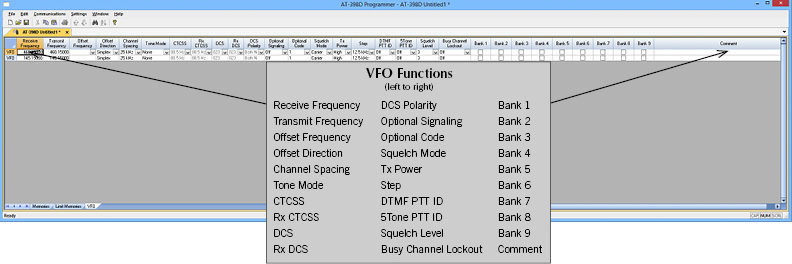

VFOThe program makes available the same VFO’s as in the radio (usually one per band). Remember these are not real memory channels since the details are lost as soon as you tune the radio manually. There is no one button recall for these. You do not need to program into VFO before programming details into a memory channel. These channels are preprogrammed in the radio and while the frequency can be changed to another within the band, they cannot be left blank.

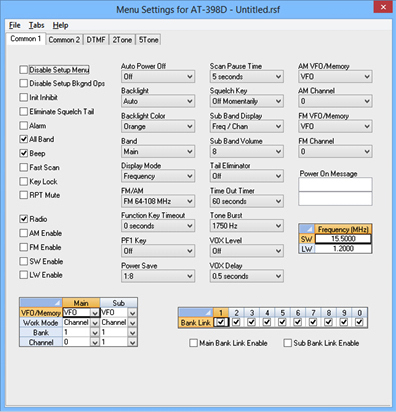

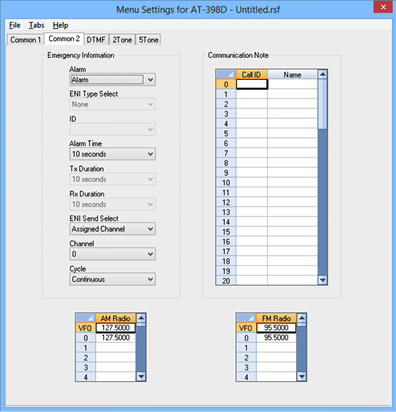

Common 1 and Common 2
Use these screens to customize other set menu features of the radio. Check boxes toggle features on or off, drop down menus list all selections and blank boxes for personalized entry add to the ease of setting up your radio exactly like you want it.

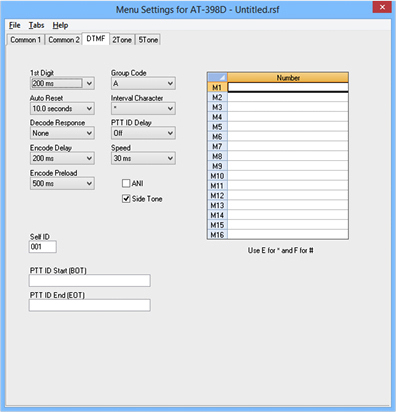

Enter DTMF memory details and customize options for this function of the radio.

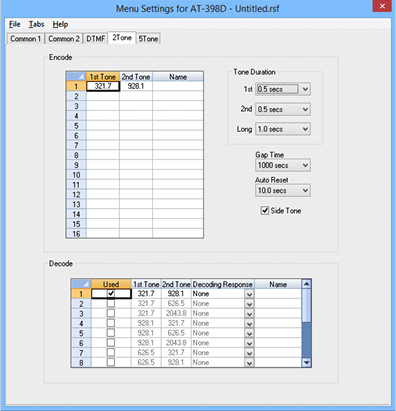

Set options for a 2Tone paging sytem.

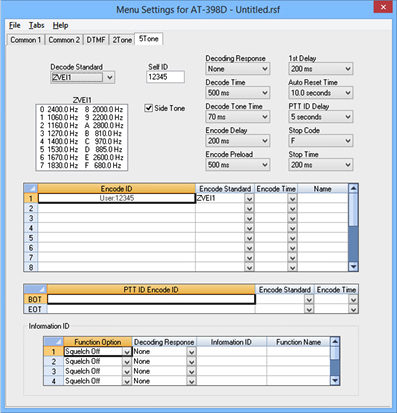

Set options for a 5Tone paging sytem.
Click here to learn more about using Preferences to customize your radio programming experience.
